Fine Blanking Machine(Independent R & D)
Automatic hydraulic fine blanking machine is a kind of advanced no chip manufacturing equipment,parts accuracy,high shear surface is bright and clean; With automatic feeding, waste automatic shear, mould safety protection etc. This equipment use special fine blanking die, fine blanking various medium thickness plate metal parts: Mainly used in automobile, motorcycle,computer and electronic newsletter ,daily hardware,building hardware,aviation ,aerospace, weapons.textile machinery and other industries fine blanking parts manufacturing .The company production of HFB hydraulic fine blanking
machine is mainly has the following types: ZFB-2000A, ZFB- 3200A, ZFB -4500A, ZFB-7000A, ZFB- 8800A, ZFB- ll000A, ZFB-15000A.
|

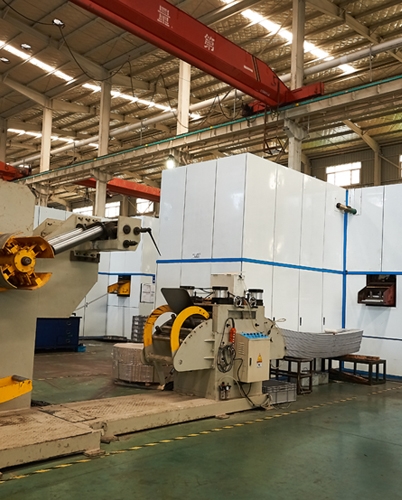

ZFB-11000AAutomatic hydraulic fine blanking machine |
||||
|
Blanking force |
Gross pressure(KN) |
11000 |
Blank holder force(KN) |
5500 |
|
Back pressure(KN) |
2700 |
Stripping force(KN) |
800 |
|
|
Kicking force(KN) |
800 |
Scrap shear force(KN) |
750 |
|
|
Working stroke |
Slide stroke(mm) |
200/310 |
Gear ring stroke(mm) |
40 |
|
Back pressure stroke(mm) |
40 |
|
|
|
|
Slider velocity |
Seissor speed(mm/s) |
5-35 |
Closure speed(mm/s) |
150 |
|
Return speed(mm/s) |
150 |
|
|
|
|
Mould installation space |
Die shut height(mm) |
350-460 |
Diameter for back pressure oil cylinder of Gear ring(mm) |
380 |
|
Mold changing plate size(mm) |
960×960 |
Mold changing plate height(mm) |
140 |
|
|
Adapter ring diameter(mm) |
500 |
Adapter ring height(mm) |
120 |
|
|
Material feed |
Feed step distance(mm) |
1-999.9 |
Feed step distance increment(mm) |
0.1 |
|
Max Material width(mm) |
40-450 |
Max Material Thickness(mm) |
16 |
|
|
Strip length(mm) |
4200 |
|
|
|
|
Other |
Capacity of tank(L) |
3000L |
Motor capactiy (KW) |
220 |
|
Machine Total Weight(kg) |
75000 |
|
|
|
